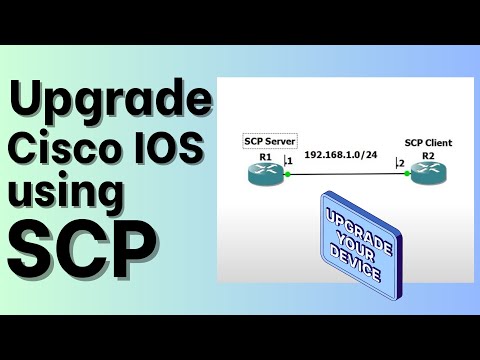

True." How to upgrade IOS on Cisco routers using SCP or Secure Copy Protocol. So, this information is from the Cisco website. The Cisco Secure Copy Protocol (SCP) feature provides a secure and authenticated method for copying router configuration and image files. SCP relies on Secure Shell (SSH), an application and protocol that offers a secure replacement for the Berkeley r-tools. In this video, I will use the following topology: R1 and R2. R1 will act as the SCP server, while R2 will be the SCP client. Here are the configurations for R1 and R2. On R1, I have already configured a local username and password. I also allowed SSH under BTY VTY lines. I configured SSH itself and set up AAA using the local database. The configuration for R2 is similar, with the difference being that R1 is configured as our SCP server. To enable SCP server functionality on R1, use the command "ip scp server enable." Now, our goal in this video is to upgrade an IOS on Cisco routers using SCP. We will copy the IOS image from R1 to R2. R2 will be the SCP client. You can try the copy command: "copy scp flash scp flash" and specify the remote host, which in this case is 192.168.1.1. Also, make sure to configure R1 as 192.168.1.1 and R2 as 192.168.1.2. When executing the command, provide the username as "cisco" and the password as "cisco." Specify the file name and the destination file name, which is the same as the source file name. Another way to use the copy command is by specifying the path. Overall, this video will guide you through the process of upgrading IOS on Cisco routers using SCP.
